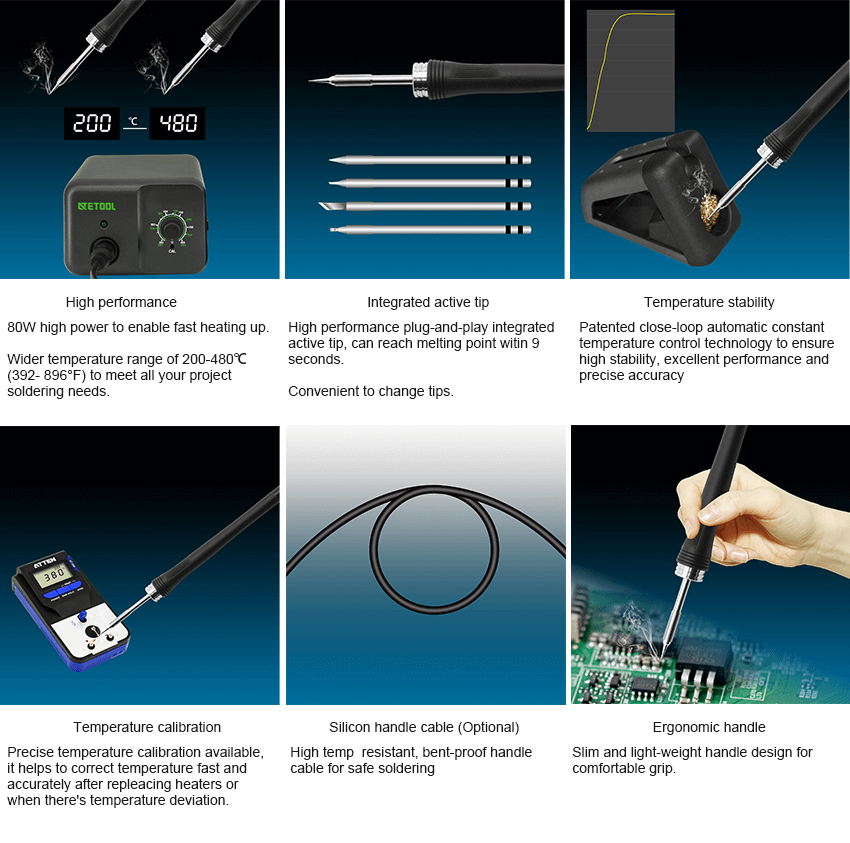

80W high power to enable fast heating up.
Wider temperature range of 200-480℃ (392- 896°F) to meet all your project soldering needs.
High performance plug-and-play integrated active tip, can reach melting point within 9 seconds.
Patented close-loop automatic constant temperature control technology to ensure high stability, excellent performance and precise accuracy

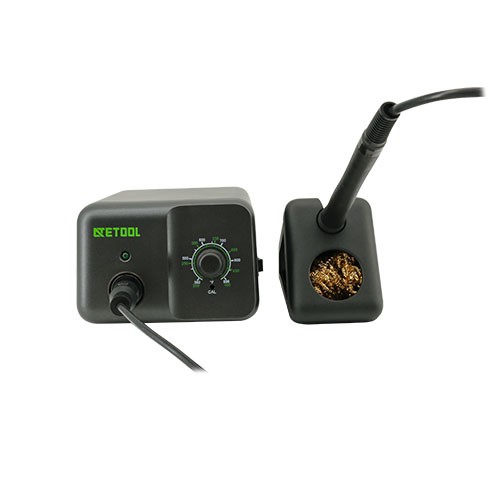

Soldering iron station, AE970, is a 80W high power tool to heat up to solder fastly. Its wide temperature range of 200-480℃ (392- 896°F) could meet all your project soldering needs. Thanks to its high performance plug-and-play integrated active tip, AE970 can reach melting point within 9 seconds. Patented close-loop automatic constant temperature control technology can ensure its soldering with high stability, excellent performance and precise accuracy.
Soldering iron station, AE970, technical features
Soldering iron station, AE970, technical parameters
| Manufacturer | ATETOOL |
| Model number | AE970 |
| Power | 80W |
| Input voltage | 110VAC / 230VAC |
| Output voltage | 25VAC |
| Temperature range | 200－480℃ (392-896℉) |
| Heating element | T80 series integrated active heater |
| Product dimension | 148x120x85mm |
| Power cord length | 1m |
| Handle cable length | 1.2m |
| Main unit net weight | 1.32kg |
| Handle net weight | 68g |
| Temperature stability | ±1℃/±1.8℉(when temperature >200℃/400℉) |
| Tip to ground resistance | <2Ω |
| Tip to ground voltage | <2mV |
| Warranty | 12 months |
| Packing list | 1 x Main unit 1 x Handle 1 x Iron stand 1 x User manual 1 x Brass wool |
