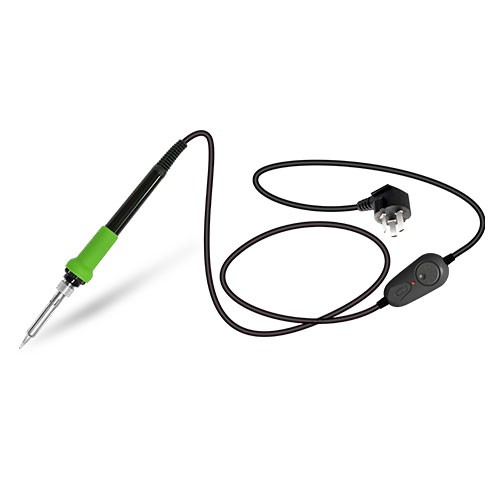

Soldering Pen AE560W

60W to enable fast heating up.

Ceramic heater provides high performance and long service life.

200-500℃ (392-932°F) tunable, easily adjust temperature via turning knob.

T900 series lead-free long life iron tip. Convenient to change tips.


Soldering Pen, AE560W, is powered by 60W PCT heating element, offering 200-500℃ (392-932°F) wide range of temperature. This could enable it to fit for various kinds of soldering process, like electronics and engineering, circuit board maintanance, phone repairing, etc. Adopting patented closed-loop automatic constant temperature control technology, this soldering iron has obvious advantages like fast temperature rise, accurate temperature control, and high reliability.

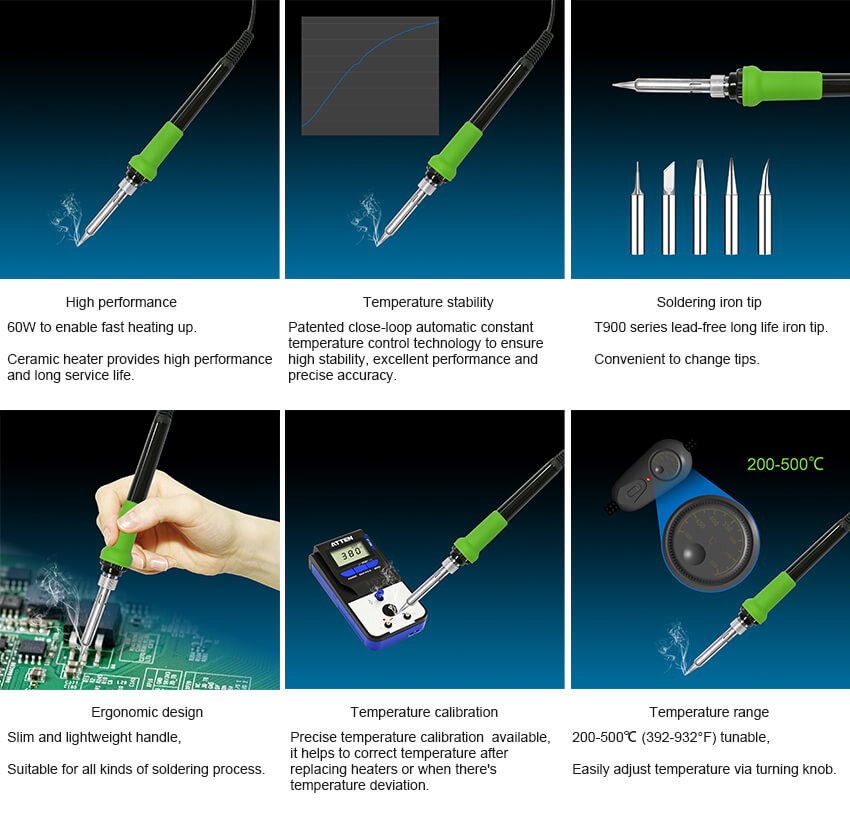

Soldering Pen, AE560W, outstanding features

soldering pen AE560W technical features.jpg

Soldering Pen, AE560W, technical parameters

  Manufacturer  ATETOOL
  Model number  AE560W
  Power  60W
  Input voltage  110VAC / 230VAC
  Temperature range  200-500℃ (392-932℉)
  Heating element  two-core PTC heating element
  Soldering tip  900M-T series tip
  Power cord length  0.5m
  Handle cable length  1.2m
  Net weight  174g
  Temperature stability  ±5℃/±9℉ (when temperature >200℃/400℉)
  Tip to ground resistance  <2Ω
  Tip to ground voltage  <2mV
  Warranty  12 months
  Packing list  1 x Soldering iron
  1 x User manual
